GRAVITATIONAL BAND SAW MACHINE

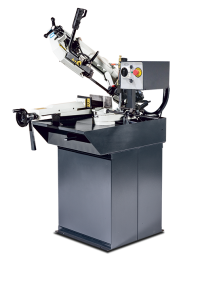

150x200 GHE-R
220x250 GHE-R
220x250 GH-R
230x280 GH-LR
260x280 GH-LR
300x320 GH-LR
Manually controlled quick clamping vice, cut is regulated by a hydraulic damper and a restrictor choke valve. A course of a cut is not influenced by a human factor and it causes a higher bladelife. A operator starts a machine pressing button START and sets a cutting speed. After finnishing the cut machines stops itself automatically and an operator lifts the arm manually to the start posittion. Feeding of material is manual. Angle cuts are possible by arm turning
A hydraulic semiautomatic band saw machine SHI with a complete hydraulic controll. The machine is equipped by a controll system and by a hydraulic agregate which after the starting a cycle controlls vice clamping, cut, arm lifting to a selected location and vice opening. The arm of machine is pushed towards the cut by a double acting hydraulic cylinder with a possible regulation of a press and rate of flow. Material is manually manipulated. Turning arm for angle cuts
All working movements of an arm, a vice and feeders are manipulated by a hydraulic agregate. The arm is pushed by towards the cut by a doubleacting hydraulic cylinder. A speed and a force of a working movement are regulated. There is possible to make a lot of feeds. Number of pieces is set in the controlling panel, setting of a lenght is made manually. It is possible to choose an automatic or a semiautomatic regime where all movements are controlled independently. Angle cuts are possible.
DOUBLE-COLUMN BAND SAW MACHINES FOR ANGULAR CUTTING
HORIZONT
440 HORIZONT SHI
440 HORIZONT X
440 HORIZONT A-CNC
440 HORIZONT X-CNC
540 HORIZONT SHI
540 HORIZONT X
540 HORIZONT A-CNC
540 HORIZONT X-CNC
SHI / X: Highly productive, semi-automatic dual column band saw machine. The saw is designed for cutting material in both straight and angular cuts, angular cuts adjustable 150° left, 90° perpendicular, 30° right (+/- 60 degrees). The saw is designed for cutting bars of solid material and profiles. Saw is used in series production in industrial plants. The saw is designed for cutting straight bars of steel material.A-CNC / X-CNC: Highly productive, automatic dual column band saw with multiple material feeding The saw is designed for cutting material in both straight and angular cuts, angular cuts adjustable 150°left, 90°perpendicular, 30°right (+/- 60 degrees). The saw is designed for cutting bars of solid material and profiles. Saw is used in series production in industrial plants. The saw is designed for cutting straight bars of steel material.
It is a highly efficient automatic hydraulically controlled band-saw with multiple material feeding.
The band saw machine is designed for cutting in automatic cycle perpendicularly as well as angularly. It enables angle cuts to the right 0 - 60 degrees and left 0-45 degrees. Automatic turning to angular cuts is a pert of cutting.
DOUBLE-COLUMN BAND SAW MACHINES FOR BUNDLE CUTTING
PROFI
400 PROFI A-CNC
It is a highly efficient automatic hydraulically controlled band-saw with multiple material feed. The machine has massive design, it is robust and has new conception of friendly control system. The blade is sloped 7 degrees to cutting table, which enables better performance during cutting of profiles as well as full materials and enables long lifetime of blade. These parameters together with powerfull drive and blade 34 mm heigh enable high productivity of machine. The machine is designed for vertical cuts. It is suitable for serial production in industrial premises. The machine is designed to saw steel materials, but also non-ferrous and light metals. However, we recommend consulting the manufacturer about this option. No other materials may be sawn without approval from the manufacturer.
X: Semiautomatic, hydraulically manipulated two column band saw machine. An unique construction of the band saw machine with three pulleys for leading of the blade. With the blade that is 8 grades sloped against the level guarantee high-efficiency of cutting. The machine is designed for vertical cuts. Highly efficient machine for cutting of construction steel of profile type. Secondary can be used for hardened material cutting.X-CNC: Automatic two column band saw machine with complete hydraulic control. The machine is designed for vertical cuts. An unique construction of the band saw machine with three pulleys for leading of the blade. With the blade that is 8 grades sloped against the level guarantee high-efficiency of cutting. Highly efficient machine for cutting of construction steel of profile type. Secondary can be used for hardened material cutting.
HIGHLY-EFFICIENT DOUBLE-COLUMN BAND SAW MACHINES
HERKULES
300x300 HERKULES X-CNC
700x750 HERKULES X
700x750 HERKULES X-CNC
850x1000 HERKULES X
850x1000 HERKULES X-CNC
1200x1400 HERKULES X
Two-column band saw machines for vertical cuts. There is the construction with the pre-tight linear bearings.This rugged machine is suitable for cutting of full materials with the attention to the cutting performance. The hydraulic agregate controlls all working functions of the semiautomatic machine.
CNC= the completely numerically controlled automat with the material feeder with the possibility of setting of several programms for setting of numbers and lenghts of cutted materials.
It is a highly efficient automatic,band-saw with multiple material feed. Bandsaw is designed for performance cutting very hard and tough materials. This bandsaw is using extremely robust construction optimized with target to get maximum rigidity of machine and minimum vibrations. Stroke of frame and feeder stroke is realized by sharpen ball screws. Machine guarantees maximum possible power a precision. The machine is designed for vertical cuts. It is suitable for serial production in industrial premises. The machine is designed to saw steel materials, but also non-ferrous and light metals. However, we recommend consulting the manufacturer about this option. No other materials may be sawn without approval from the manufacturer. Conception of bandsaw is FCV= feeder-cut-main vice. Conception FCV enable cut material in automatic cycle with shortest possible end. Don´t need to measure and cut ends of bar in semi-automatic cycle.
